UEBLER* REAR BIKE CARRIER F32,FOR UP TO 3 BIKES

---COMPATIBLE-INFO---

Tourneo Custom 06/2019 - 09/2023 ,

Except PHEV

Kuga 12/2019 - 02/2024

Focus 01/2022 -

Fiesta 01/2022 -

Transit Custom 02/2018 - 05/2019 , Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Custom 02/2018 - 05/2019 , Please note: rear door cannot be opened even when bike carrier is tilted

Fiesta 07/2017 - 12/2021

Kuga 09/2016 - 11/2019

Mondeo 09/2010 - 08/2014

C-MAX 04/2015 -

Focus 09/2014 - 03/2018

Edge 09/2018 -

Transit Connect 06/2018 - 03/2024

Tourneo Connect 06/2018 - 01/2022

Focus 04/2018 - 12/2021

Transit 05/2019 -

Transit Custom 06/2019 - 09/2023 ,

Except PHEV

Fiesta Van 08/2019 - 12/2021

Mondeo 02/2019 -

Ranger 02/2019 - 11/2022

Transit Custom 08/2012 - 01/2018 , Please note: rear door cannot be opened when bike carrier is tilted

Ranger 2012 - 01/2019 , Please note: rear tailgate cannot be opened when bike carrier is tilted

Kuga 11/2012 - 08/2016

S-MAX 03/2010 - 04/2015

Ranger 2006 - 2011

Focus 01/2011 - 08/2014

C-MAX 11/2010 - 03/2015 , Only in combination with detachable or retractable tow bar

Galaxy 03/2010 - 04/2015

Tourneo Custom 08/2012 - 01/2018 , Please note: rear door cannot be opened when bike carrier is tilted

Transit Connect 02/2014 - 05/2018 , Please note: rear door cannot be opened when bike carrier is tilted

Tourneo Connect 02/2014 - 05/2018 , Please note: rear door cannot be opened when bike carrier is tilted

Transit 01/2014 - 04/2019 , Please note: rear door cannot be opened when bike carrier is tilted

Mondeo 09/2014 - 01/2019 , Only in combination with detachable or retractable tow bar

Galaxy 06/2015 -

S-MAX 06/2015 -

Edge 01/2016 - 08/2018

---DESCRIPTION---

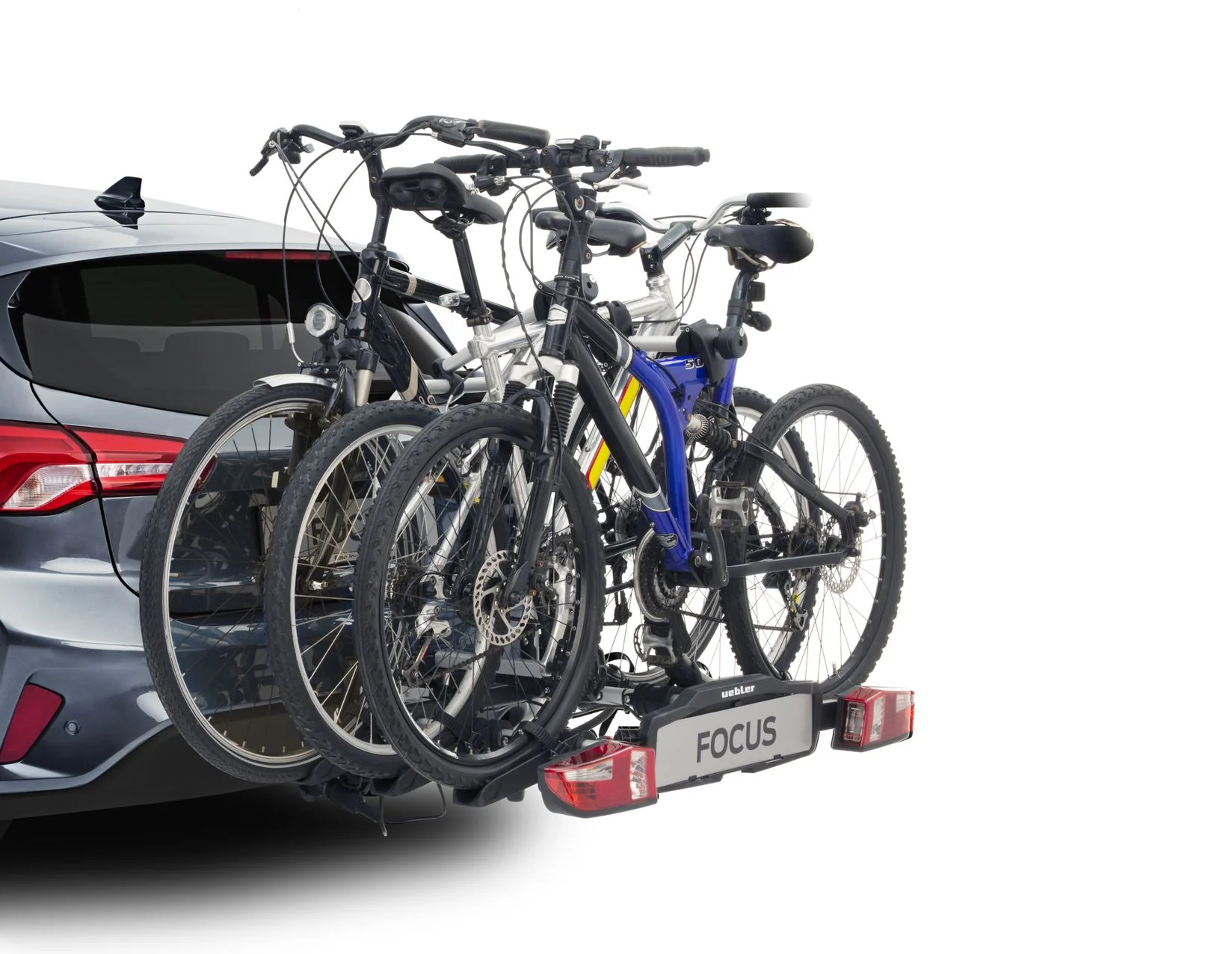

Tow-bar mounted bike-carrier allows you to transport your bike conveniently, with minimal lifting.

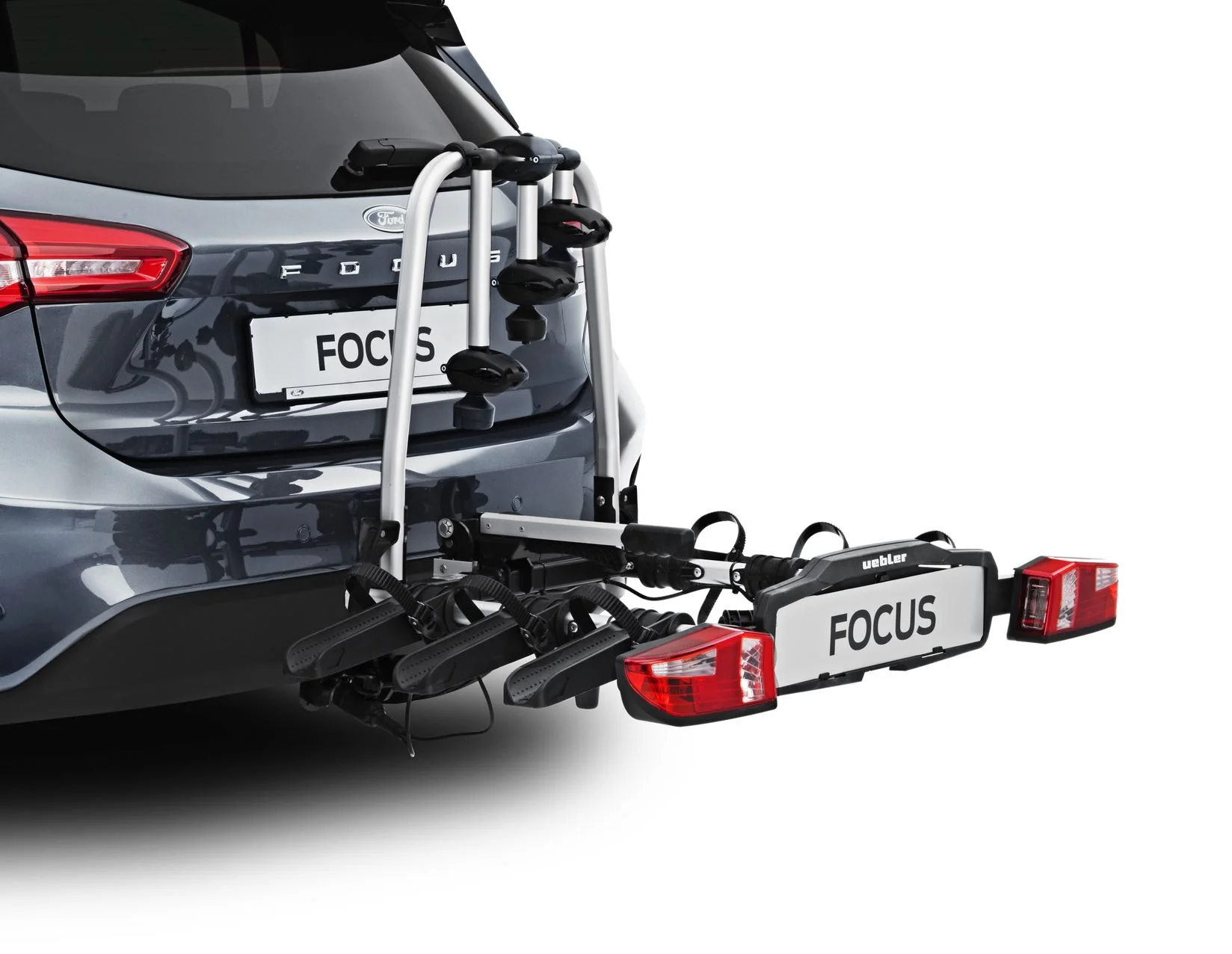

Small and lightweight tow bar mounted bike carrier for 3 bikes. Due to its patented folding system tail lights, bicycle holders and support frame can be easily and completely folded. Carrier is lockable to the tow bar and bikes are also lockable to the carrier.

• Size: 770 x 1180 x 790 mm, Size folded: 250 x 650 x 740 mm
• Maximum bicycle wheel hub distance: 1300 mm
• Weight: approximately 14 kg, including 13 pin adapter
• 30 kg load capacity for each bike
• Suitable for bicycle frames up to a diameter of 75 mm round and 75 x 45 mm oval
• Also suitable for E-Bikes
• Maximum vertical load: 54 kg from 75 kg tow bar load and a D-Value 6.7 kN
• Maximum vertical load: 35,5 kg under a tow bar load of 75 kg and a D-Value of 6.7 kN
• Maximum vertical load under a D-Value of 6.7 kN or a tow bar load under 50 kg not permissible

---GPSR-INFO---

These are products that require specialist knowledge and/or special tools for installation. The products are not intended for self-assembly without this specialist knowledge. If necessary, please contact an authorized Ford service centre or another qualified specialist workshop regarding installation.
