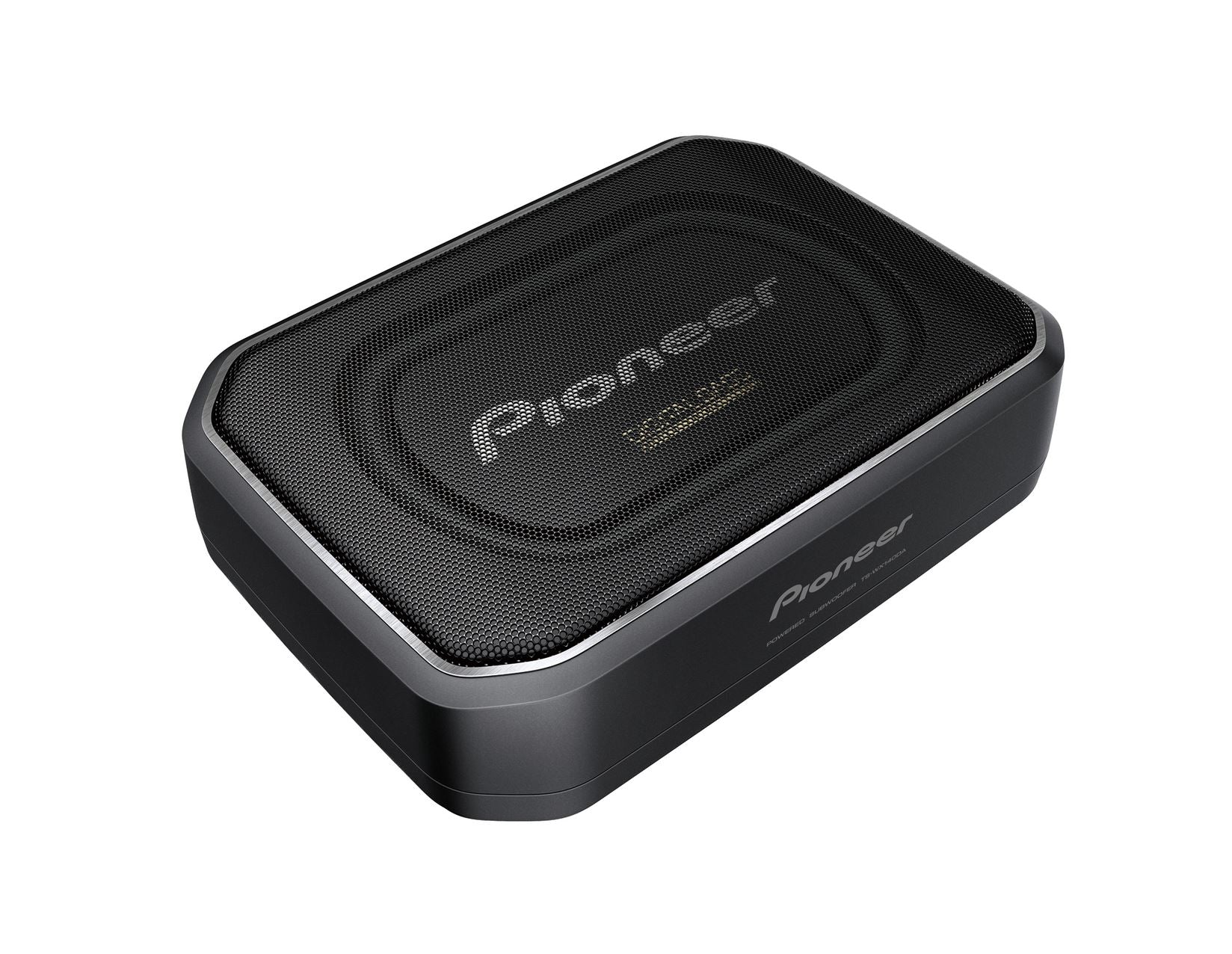

PIONEER* SUBWOOFER TS-WX140DA

---COMPATIBLE-INFO---

Mustang 10/2023 -

Tourneo Connect 02/2022 -

Tourneo Custom 06/2019 - 09/2023

Kuga 12/2019 - 02/2024

Fiesta 01/2022 -

Kuga 03/2024 -

Transit Connect 04/2024 -

Tourneo Custom 02/2018 - 05/2019

Transit Custom 02/2018 - 05/2019

Transit Courier 06/2018 - 07/2023

EcoSport 10/2017 -

Fiesta 07/2017 - 12/2021

Mondeo Hybrid Hybrid 09/2014 -

Focus 01/2008 - 12/2010

Focus 09/2014 - 03/2018

C-MAX 04/2015 -

Mondeo 09/2010 - 08/2014

Kuga 09/2016 - 11/2019

KA+ 06/2016 - 02/2018

Transit 05/2019 -

Mondeo 02/2019 -

Transit Custom 06/2019 - 09/2023

Fiesta Van 08/2019 - 12/2021

Tourneo Connect 06/2018 - 01/2022

Transit Connect 06/2018 - 03/2024

Tourneo Courier 06/2018 - 07/2023

KA+ 03/2018 -

Mustang 03/2018 - 03/2023

Edge 09/2018 -

Transit Custom 08/2012 - 01/2018

Kuga 11/2012 - 08/2016

Kuga 2008 - 10/2012

S-MAX 03/2010 - 04/2015

B-MAX 2012 -

Ka 09/2008 - 05/2016

Galaxy 03/2010 - 04/2015

Focus 07/2004 - 12/2007

C-MAX 11/2010 - 03/2015

Fiesta 09/2008 - 10/2012

Focus 01/2011 - 08/2014

Tourneo Custom 08/2012 - 01/2018

Transit Connect 02/2014 - 05/2018

Transit 01/2014 - 04/2019

EcoSport 10/2013 - 09/2017

Transit Courier 03/2014 - 05/2018

Tourneo Connect 02/2014 - 05/2018

Mondeo 09/2014 - 01/2019

S-MAX 06/2015 -

Galaxy 06/2015 -

Fiesta 11/2012 - 06/2017

Mustang 03/2015 - 02/2018

Edge 01/2016 - 08/2018

---DESCRIPTION---

Enhance your sound system with a highly powerful, but space-saving Pioneer+ subwoofer - for an even better bass feeling.

Compact and powerful active subwoofer in a sealed enclosure, it can be fitted in the load compartment or even under the seat due to its space saving, ultra-flat design (not in combination with electrical seat adjustment when fitted under the seat). The subwoofer is capable of taking both low RCA line input or high speaker line input, meaning you can connect it to your aftermarket or original factory fitted stereo to upgrade the sound you already have. Additional universal loudspeaker cable might be required in some cases (approx. 0.5 m)

Ford recommends that you use a qualified technician to fit parts. Damage owing to incorrect fitment is not covered under warranty.

• Easy to install
• 20 cm aluminium woofer
• 170 W maximum power and 50 W nominal power

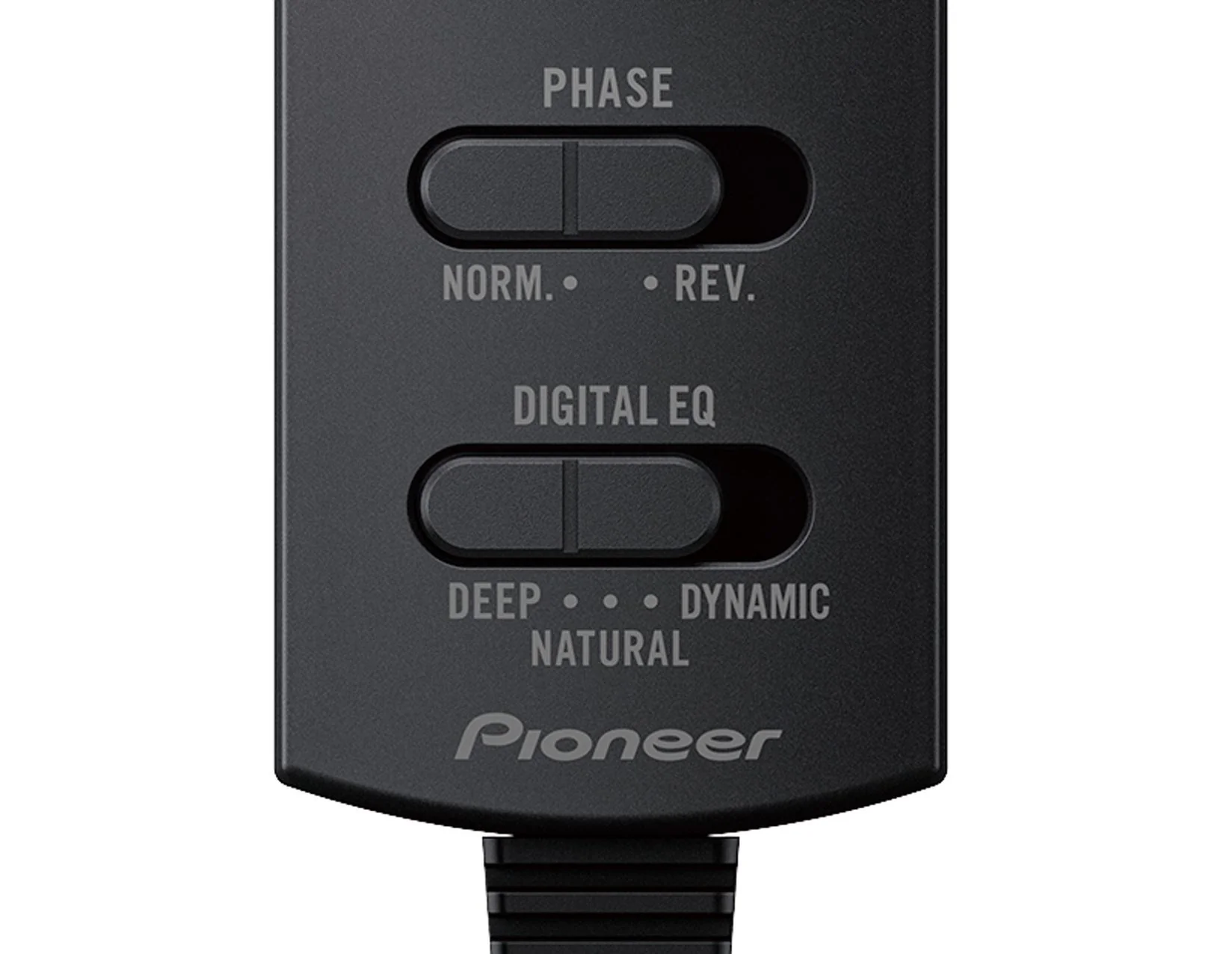

• Class-D amplifier utilising Digital Bass Control for deep, natural or dynamic bass modes
• Electric vehicle optimised, compact design, low power consumption and low weight
• CarSoundFit app, downloadable car sound simulator for an improved in-car experience
• Dimensions: 280 x 200 x 70 mm
• Weight: 3.1 kg
