LAPP* MOBILITY DOCK CHARGING ADAPTOR FOR BRITAIN AND IRELAND

---COMPATIBLE-INFO---

Transit 05/2019 - , Battery Electric Vehicle (BEV)

Mustang Mach-E 09/2020 -

Kuga 12/2019 - 02/2024 , Plug-In Hybrid Electric Vehicle (PHEV)

Tourneo Custom 06/2019 - 09/2023 , Plug-In Hybrid Electric Vehicle (PHEV)

Transit Custom 06/2019 - 09/2023 , Plug-In Hybrid Electric Vehicle (PHEV)

Tourneo Connect 02/2022 - , Plug-In Hybrid Electric Vehicle (PHEV)

All-Electric Explorer 03/2024 -

Ranger 06/2022 -

All-Electric Capri 10/2024 -

Kuga 03/2024 - , Plug-In Hybrid Electric Vehicle (PHEV)

Tourneo Courier 11/2023 - , Battery Electric Vehicle (BEV)

Transit Courier 11/2023 - , Battery Electric Vehicle (BEV)

Transit Custom 10/2023 - , Battery Electric Vehicle (BEV), Plug-In Hybrid Electric Vehicle (PHEV)

Tourneo Custom 10/2023 - , Battery Electric Vehicle (BEV), Plug-In Hybrid Electric Vehicle (PHEV)

Transit Connect 04/2024 - , Plug-In Hybrid Electric Vehicle (PHEV)

Puma 04/2024 - , Battery Electric Vehicle (BEV)

---DESCRIPTION---

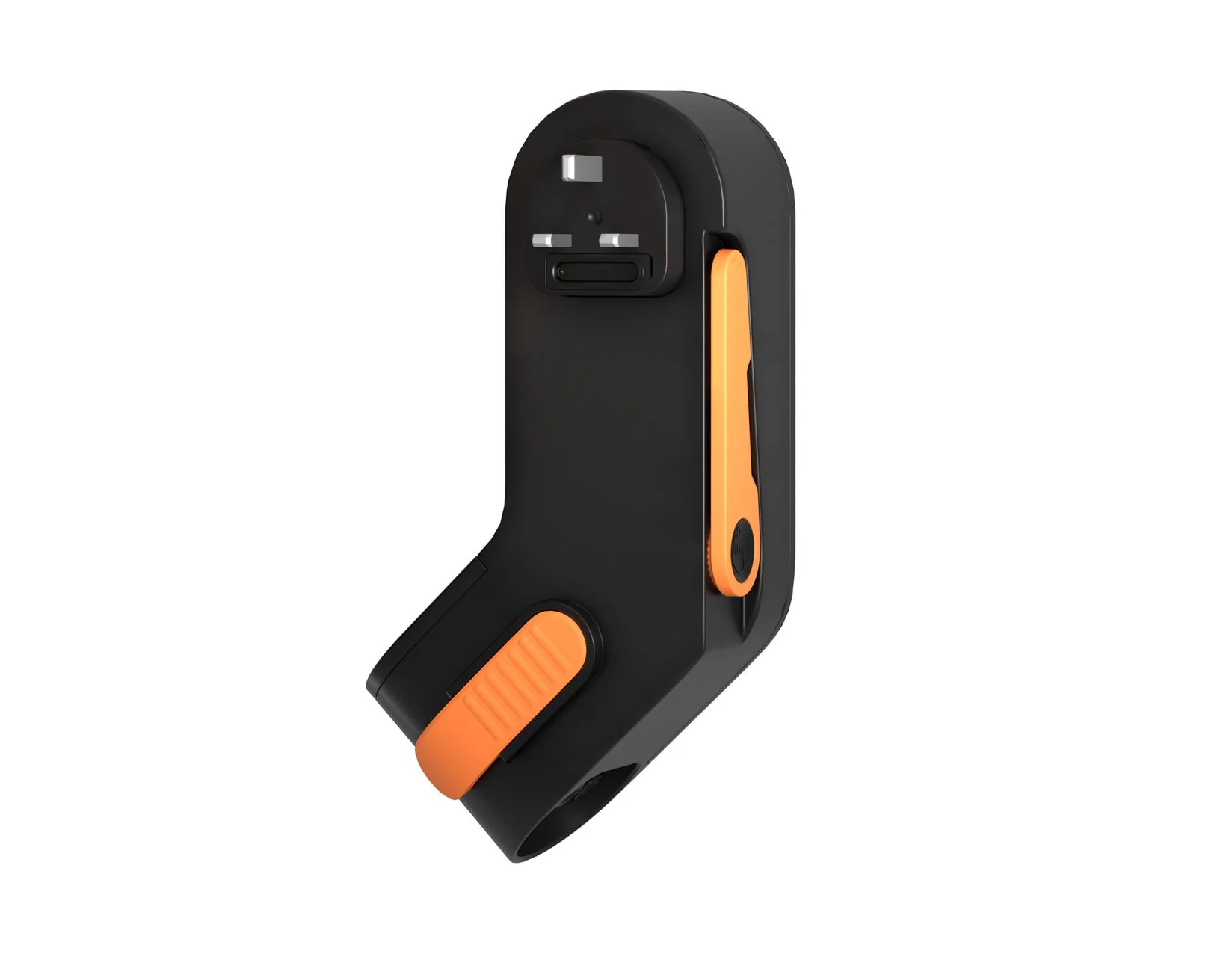

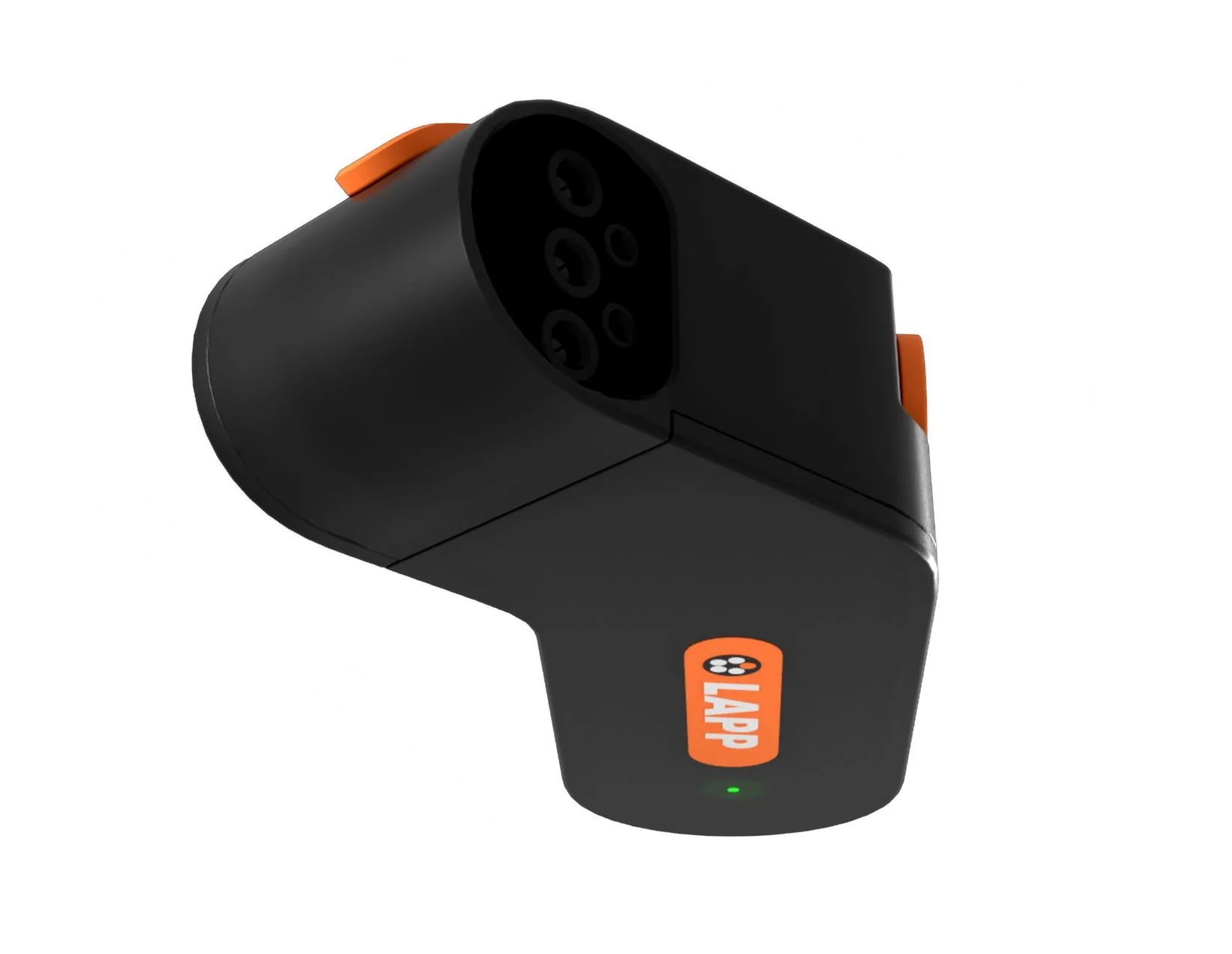

The mobility dock is designed for charging from a standard domestic household power socket. It uses the vehicle’s existing mode 3 charging cable which is connected between the car and the mobility dock, which is then connected to the mains power. The mobility dock has a range of functions including essential overcurrent protection, excess temperature monitoring and user protection.

Please note: The Mobility Dock Charging Adaptor is designed for operating in power grids with neutral wire only.

• Type G power connector (charging current 10A , 1-phase, 230V)
• Mode 2 charging in compliance with IEC 61851
• In-cable control and protection device in compliance with IEC 62752
• Socket for mode 3 charging cable (IEC 62196)
• Charging power up to 2.3 Kw, automatically adjusting
• Protection rating IP44, connected IP44 (charger, connector/coupling)
• Socket distance support lever
• Release lever for easy disconnection
• Gyro sensor for vertical position monitoring
• LED status indication
• Self-test on start
• Residual current detection (AC) - immediately disconnects in the event of potentially fatal AC faults
• Residual current detection (DC) - provides effective protection against DC faults, so that upstream type A RCDs do not become blind
• Charge monitoring to vehicle
• Continuous protective earth
• Relay monitoring
• Overcurrent detection
• Over and under voltage detection
• Flame retardant, oil resistant and halogen free
• Includes power connector dust cap and operating instructions
• Space saving storage with compact design
• Ambient temperature -25°C to +45°C
• Dimensions 255 x 135 x 96 mm
• Weight: 750 g
